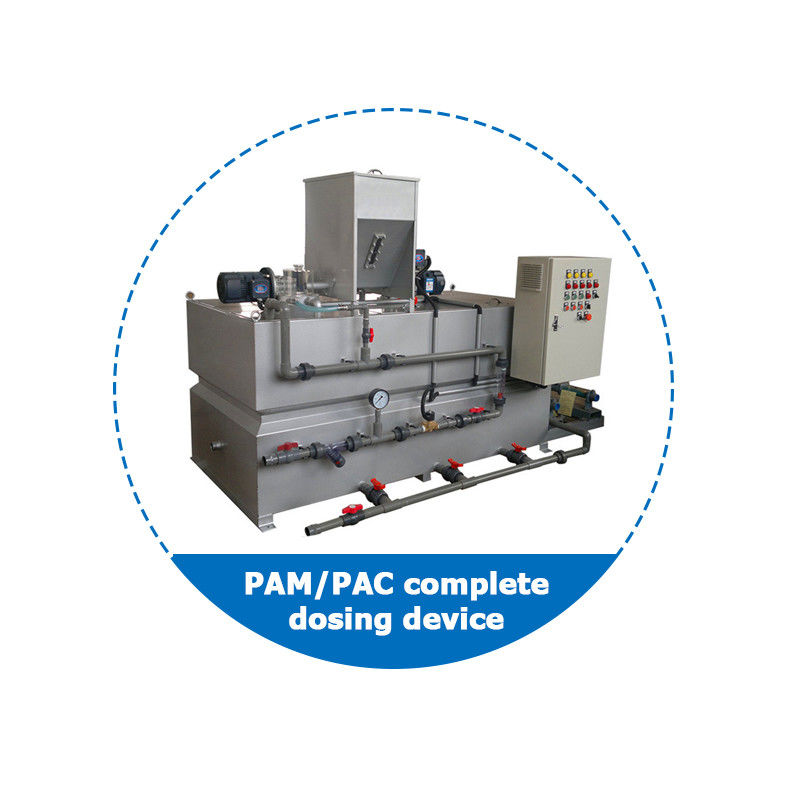

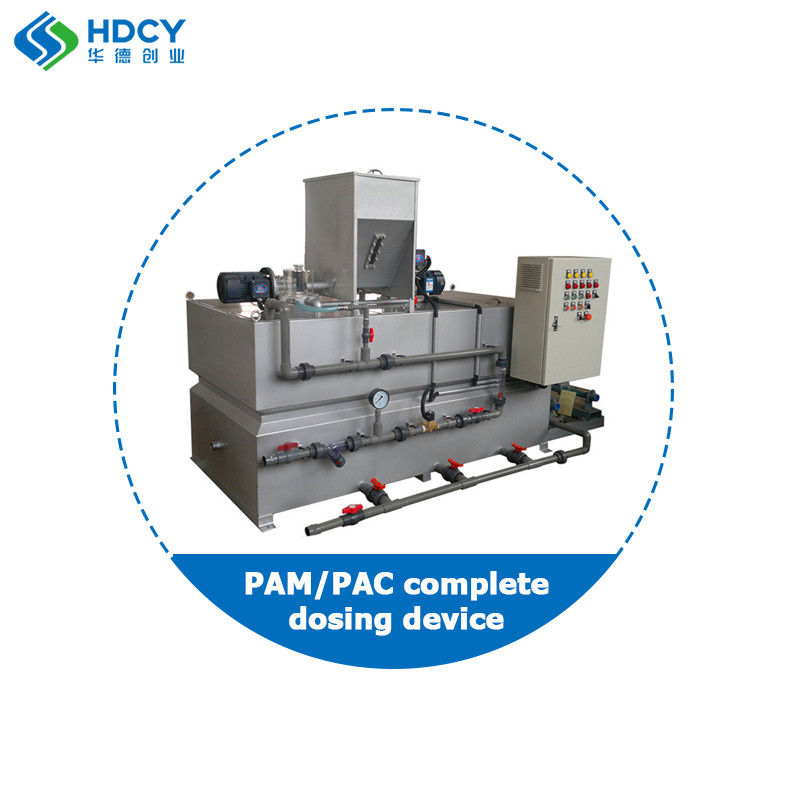

Polyacrylamide/Polyaluminum Chloride Complete Dosing Device Automatic Dosing Device

Product Introduction:
Automatic dosing device is a utility model equipment designed by our company for optimizing water treatment system transportation, and a new generation of energy-saving water treatment equipment that absorbs the advantages of similar products at home and abroad. It solves the problem that customers will not install mixers, dosing devices, control devices, etc., and can be put into use after the user purchases it, with simple operation, easy maintenance and long service life.
The automatic dosing device is mainly composed of solution tank, mixer, metering pump, Y-type over-hour device, solenoid valve, check valve, pulse damper, liquid level switch, pressure gauge, control cabinet, installation platform and so on. The user only needs to request that the combined dosing device be installed in the dosing room. The dosing pipe is connected, the power supply is connected, and it can be started and put into operation. During the operation process, the pH of the liquid is automatically checked, and the phase reagent is intelligently judged and added.

The working principle:
By the principle of mechanical pulse action and stroke adjustment of the metering pump, the drug is added to the system. Automatic dosing is achieved through the following three control modes,
1. Manual control mode: manual operation controls the start and stop of the metering pump to add medicine
2, time control mode: use microcomputer time control switch to control the metering pump at a fixed time to open and close, to achieve timing dosing.
3, indicator control mode: with water quality indicators, such as PH value, ORP, conductivity and other changes to control the opening and closing of the metering pump.

Product characteristics:
1. Various proportions of water treatment agents can be added with high precision and accurate measurement.
2, high degree of automation, simple operation, low energy consumption.
3, installation, use and maintenance is simple and convenient.
4, strong corrosion resistance, strong acid and alkali resistance, stable and reliable.
5, if the user needs, the system can achieve remote control, and access to the computer management system.

Product mix:
Customers can combine freely according to their own needs:
1. Dosing barrel + metering pump + mixer + automatic instrument + level gauge + control electric box
2, medicine barrel: color: white and yellow, volume: 40L 100L 200L 500L 1000L 2000L Material: imported polyethylene plastic raw materials. Special note: When the larger bucket logistics is calculated according to the cargo, the freight is more expensive.
3, applicable metering pump capacity: 0-15L using electromagnetic diaphragm metering pump 15-130L horizontal mechanical diaphragm pump 130L-2000L using GM, GB vertical mechanical diaphragm pump
4, mixer: cycloidal and gear mixer, adjustable and non-adjustable.
5. Automatic instrument: PH instrument, ORP instrument, etc
6. Liquid level meter: magnetic flap liquid level meter and induction type liquid level meter
7, control electric box: manual and automatic, (box with stainless steel and paint)

Product Description:​
