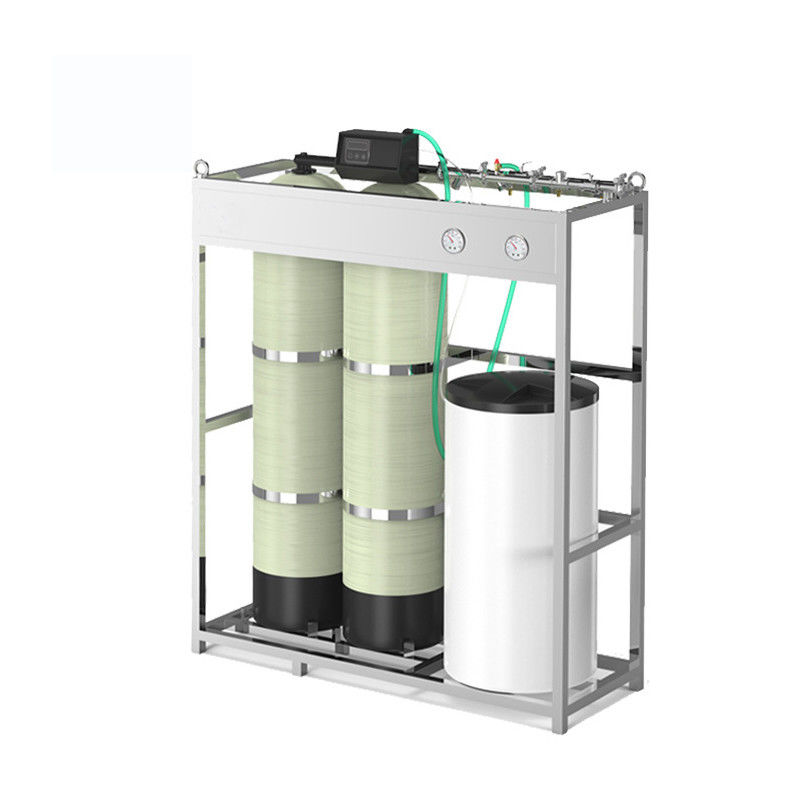

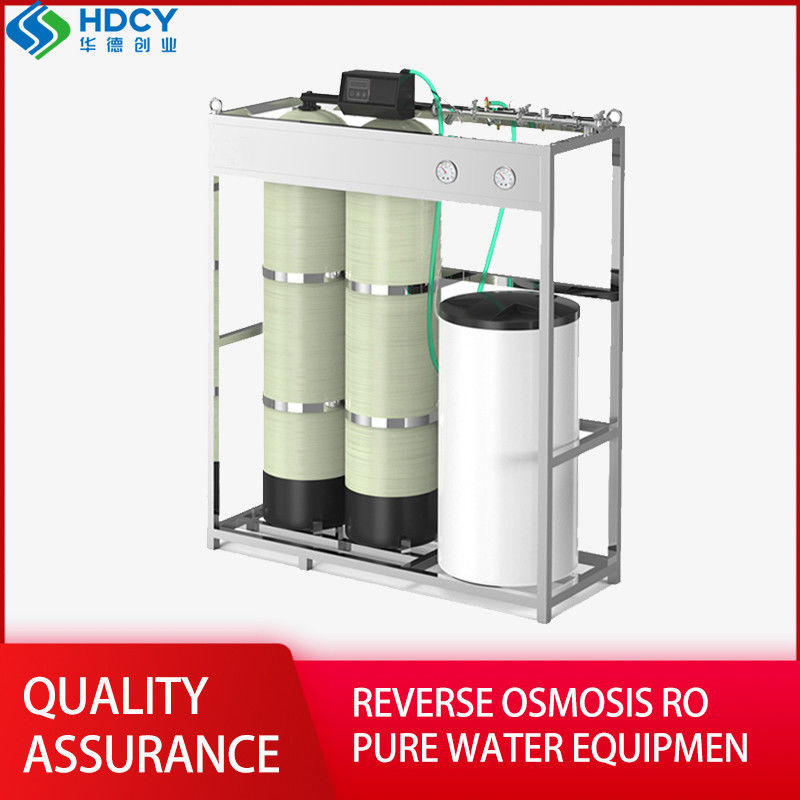

Automatic Water Softener Water Filter Sodium Ion Equipment Industrial Boiler Integration Device

Automatic Water Softener Water Filter Softener Sodium Ion Equipment Industrial Boiler Integration Device

Product attribute:

Water yield (t/h) :5
Rated water flow (t/h) :5
Working pressure (MPa) :0.25-0.5 Mpa
Inlet and outlet diameter (mm) :32
Resin tank size (mm) :500 * 1750
Resin filling capacity (L) :225
Salt tank volume (L) :300
Tank pressure:1.0
Control mode:Fully automatic
Working temperature:0 to 50
Sealing material:Mechanical seal
Power Supply:220V
Tank material:Glass fiber reinforced plastic
Raw water hardness:Greater than 200
Water hardness:1, 5 or less

Main characteristics:
High automation: The automatic water softener runs automatically throughout the whole process, only needs to add salt regularly, without manual intervention, which greatly improves the operation efficiency.
High efficiency and low energy consumption: the equipment is compact and reasonable, easy to operate and maintain, occupies a small area, and the operation cost is economical, reducing the use cost.
Strong stability: stable water supply condition, long service life, can solve the user's worries.
Widely used: It has been widely used in all kinds of steam boilers, hot water boilers, heat exchangers, steam condensers, air conditioners, direct gas turbines and other equipment and systems, and can also be used as domestic water treatment, as well as food, electroplating, medicine, chemical industry, printing and dyeing, textile, electronics and other industrial water treatment.

Work flow:
The working process of the automatic water softener includes five processes: working (water production), backwashing, salt absorption (regeneration), slow washing (replacement) and fast washing. All processes of different softened water equipment are very close, but due to the actual process or control needs, there may be some additional processes.

Control system:
Automatic water softening equipment control system technology molding, simple operation, reliable operation, and microcomputer control, making its operation more simple, easier to manage. According to the needs of users, automatic water softener can be divided into time control type, flow control type, continuous water supply system type and other series, there are single valve single tank, single valve double tank, double valve double tank parallel, large multi-valve multi-tank series and other combination forms, to meet the different water needs of users.

Installation and precautions:
When installing the automatic water softening device, it is necessary to correctly connect the device according to the installation process, and ensure that the distance between the drain pipe and the water surface of the drain is the problem to prevent siphoning. For large equipment, it is recommended to use a soft connection to connect the inlet and outlet water pipes of the softening equipment to facilitate resin replacement.
