Brand Name:
HDCY
HDCY system
The HDCY system is a two-stage process developed by Beijing Huade Chuangye Environmental Protection Equipment Co., Ltd. specifically for treating desulfurization wastewater.
Core equipment list
| Number | Equipment/components | Device Description | Amount | unit |
| First | First-level HDCY integrated desulfurization wastewater treatment system | HDC-A-3-0(F) | 1 | Set |
| 1 | One-stage high-efficiency reactor | Effective volume: 3.5m³, size: 1.2x2.4x1.5m, carbon steel lined with rubber | 1 | Unit |
| 2 | First level mixer A | Size φ600x1200mm, rotation speed 70rpm, | 1 | Unit |
| Fixed frequency 50hz, material: current parts 2205 | ||||
| 3 | First-level mixer B | Size φ600x1200mm, rotation speed 150rpm, | 1 | Unit |
| Frequency conversion 0~50hz, material: current parts 2205 | ||||
| 4 | Dry powder dosing machine | Drug storage volume 100L, feeding speed: 0~3kg/h, material 304, auxiliary devices: moisture-proof heating, vibration motor, low material level switch, frequency conversion | 1 | Unit |
| 5 | First level lift pump | Flow rate 3m³/h, lift 20m, | 2 | Unit |
| Frequency conversion 0~50hz, material: current parts CR30 | ||||

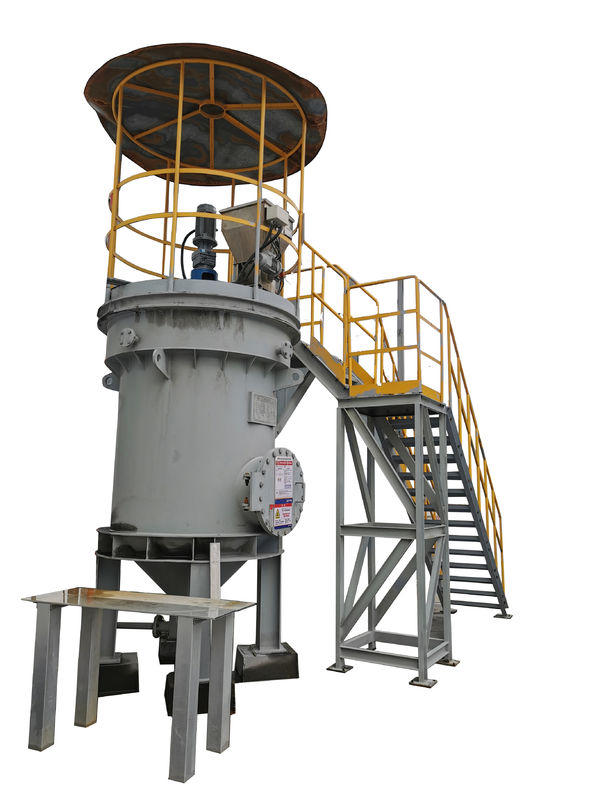

| 6 | One-stage high-efficiency cyclone clarifier | Processing capacity: 3m³/h, size: φ1.5x4.7m, material: carbon steel lined with rubber. | 1 | Unit |
| Second | Secondary HDCY integrated desulfurization wastewater treatment system | HDC-A-3-0(F) | 1 | Set |
| 1 | Two-stage high-efficiency reactor | Effective volume: 3.5m³, size: 1.2x2.4x1.5m, carbon steel lined with rubber | 1 | Unit |
| 2 | Secondary mixer A | Size φ600x1200mm, rotation speed 70rpm, | 1 | Unit |
| Fixed frequency 50hz, material: current parts 2205 | ||||
| 3 | Secondary mixer N | Size φ600x1200mm, rotation speed 150rpm, | 1 | Unit |
| Frequency conversion 0~50hz, material: current parts 2205 | ||||
| 4 | Dry powder dosing machine | Drug storage volume 100L, feeding speed: 0~3kg/h, material 304, auxiliary devices: moisture-proof heating, vibration motor, low material level switch, frequency conversion | 1 | Unit |
| 5 | Secondary lift pump | Flow rate 3m³/h, lift 20m, | 2 | Unit |
| Frequency conversion 0~50hz, material: current parts CR30 | ||||
| 6 | Two-stage high-efficiency cyclone clarifier | Processing capacity: 3m³/h, size: φ1.5x4.7m, material: carbon steel lined with rubber. | 1 | Unit |
| Third | Dosing system | |||
| 1 | Lye | Flow rate 50L/h, lift 35m, | 1 | Set |
| Dosing system | Frequency conversion 0~50hz, material: pump head PTFE | |||
| 2 | Fluoride remover | Flow rate 50L/h, lift 35m, | 1 | Set |
| Dosing system | Frequency conversion 0~50hz, material: pump head PTFE |
Key Features:
Advantages of the flocculant:
